Technical Spring Catalog
Browse detailed specifications for our precision spring series. We offer custom manufacturing with wire diameters ranging from 0.1mm to 6.0mm.

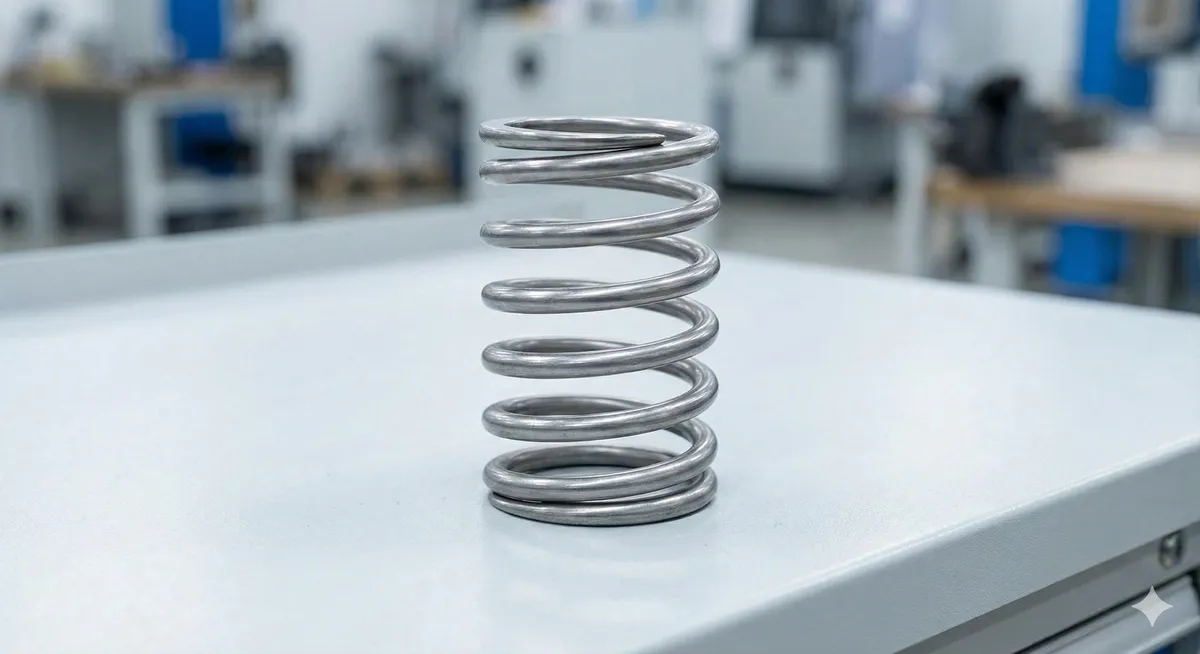

Compression Springs
High-performance helical springs offering resistance to compressive forces. Engineered for consistent load stability and fatigue resistance in demanding cycles.
| Wire Diameter Range | 0.1mm – 6.0mm |
|---|---|
| Material Options | Music Wire, SS 302/316, Inconel X-750, Chrome Silicon |
| End Types | Closed & Squared, Closed & Ground, Open Ends |
| Max Operating Temp | Up to 500°C (Inconel Alloy) / 120°C (Music Wire) |
| Key Standards | DIN 2095, JIS B 2704, ASTM A228 |
Extension Springs
Designed to absorb and store energy by offering resistance to tensile forces. Features precise hook geometry for secure mounting and stress alignment.
| Wire Diameter Range | 0.1mm – 6.0mm |
|---|---|
| Hook Types | Machine (Standard), Crossover Center, Extended Hooks |
| Initial Tension | Customized to application load requirements |
| Finish Options | Zinc Plating, Black Oxide, Passivation, Powder Coating |

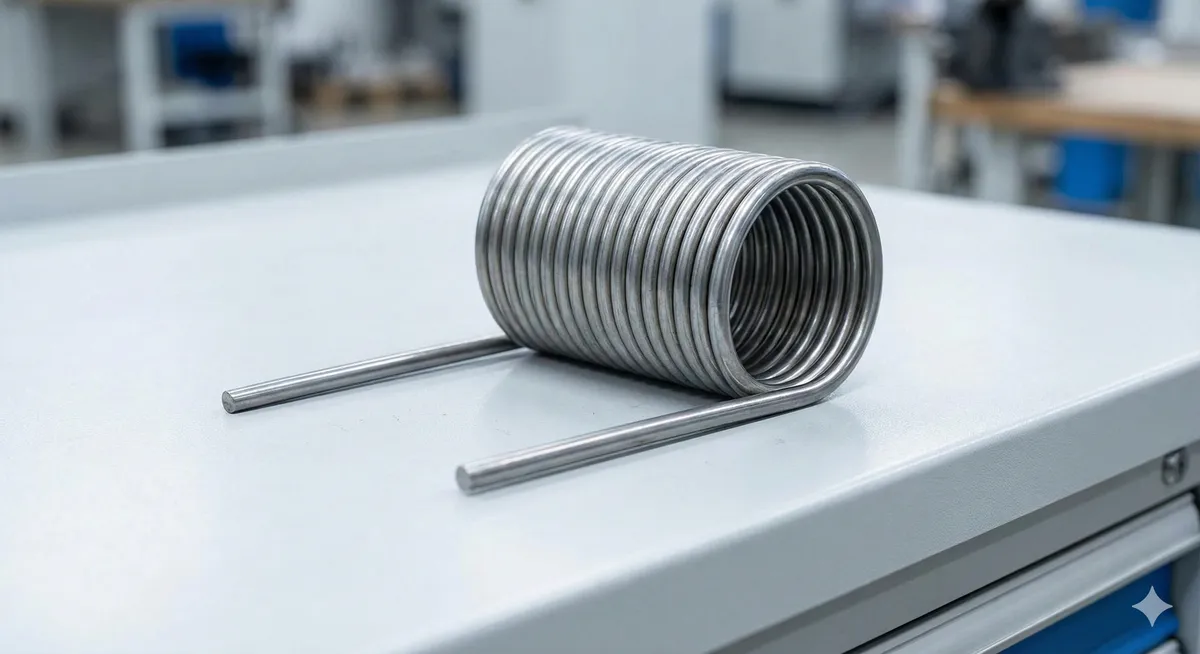

Torsion Springs
Helical springs used to apply torque or store rotational energy. Available in single or double-bodied configurations for complex mechanisms.
| Wire Diameter Range | 0.1mm – 6.0mm |
|---|---|
| Leg Configurations | Straight, Offset, Hinged, Custom Bends |
| Torque Capacity | Custom calculated based on deflection angle |
| Applications | Automotive hinges, electronics, industrial levers |

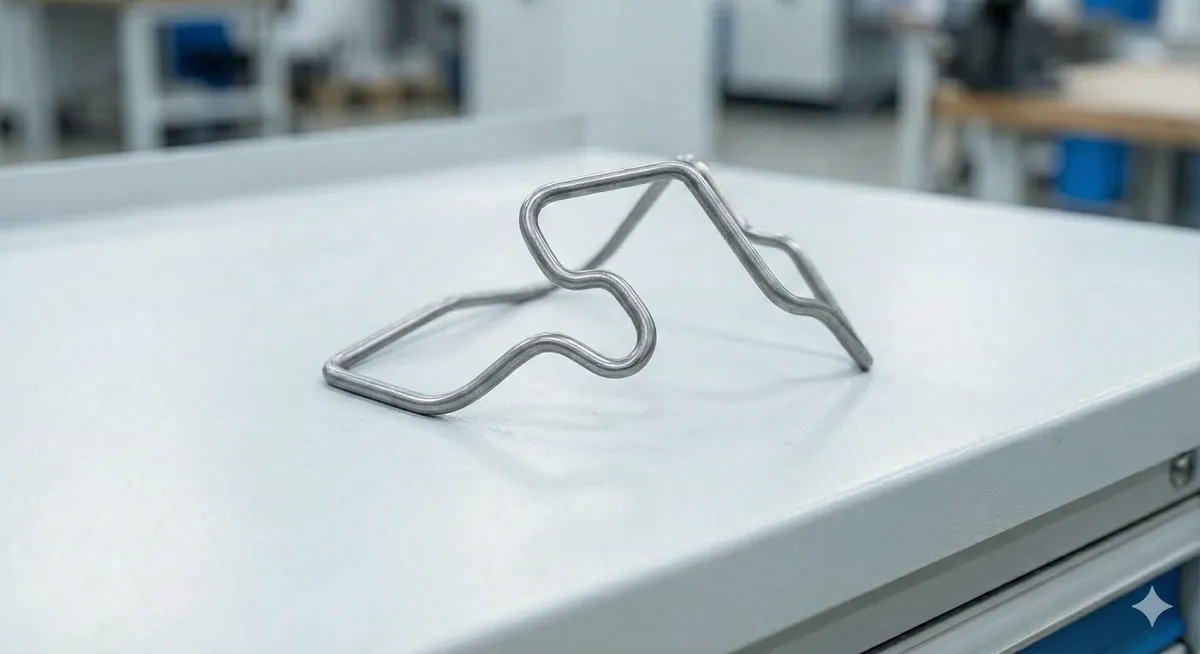

Custom Wireforms
Complex bent wire components manufactured to precise 3D coordinates. We utilize advanced CNC forming technology to create repeatable geometries without the need for expensive tooling.
| Wire Diameter Range | 0.1mm – 6.0mm |
|---|---|
| Materials | Bright Mild Steel, Pre-galvanized, Stainless 304/316 |
| Finishes | Chrome, Zinc Plating, Powder Coating, Plastic Dip |
| Applications | Retaining clips, seat frames, light guards, hooks |
Custom Engineering?
Don't see what you need? We specialize in specific custom requirements including Wireforms and Wave Springs.
